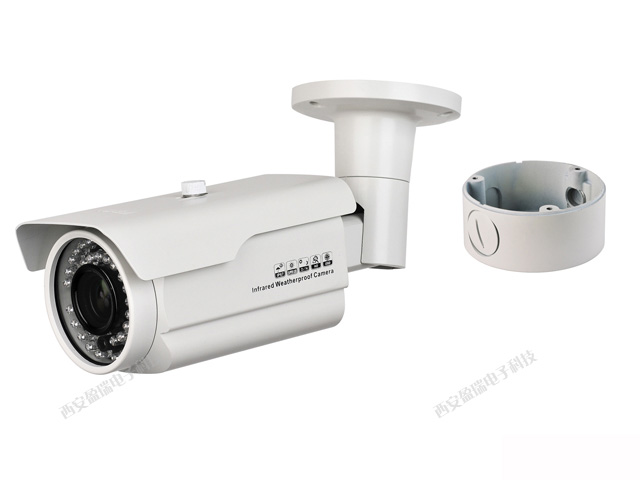

型號  Model

DIS-750SDI

圖像傳感器Image Sensor

1/3Panasonic COMS (MN34041PL)

總像素Total Pixel

2010(H) x 1108(V) = 2,227,080

有效像素Active Pixel

1944(H) x 1092(V)= 2,122,84

掃描系統(tǒng)Scanning system

Progressive

分辨率Resolution

1080(30P), 720(60P) Max: 1,200TV lines(1080P)

照度Min.Illumination

Color : 1.0 lux, BW : 0.5 lux, Color DSS : 0.002 lux, BW DSS : 0.0008 lux

視頻輸出Video Output

HD-SDI, Analog : NTSC/PAL CVBS(w/o WDR)

信噪比S/N Ratio

More than 50dB (AGC off)

鐿頭  Lens

2.8-12mm VF Lens

紅外燈照射距離  IR distance

40M

工作，運行Function

鏡頭  Lens

DC/Manual

自動增益控制AGC

0 - 20 steps

快門速度Shutter Speed

AUTO/MANUAL(1/50(60) ~ 1/60,000 sec)

數字快門Digital Slow Shutter

Off/On(x4)

亮度  Brightness

0 - 20

寬動態(tài)/背光補償WDR/BLC

Off/BLC/WDR

自動爆光  ACE

Off/On

日夜轉換模式Day&Night

Auto/Color/B&W

白平衡White Balance

Auto/Autoext/Pushing/Manual

數字降噪DNR(Digital Noise Reduction)

Off/Low/Middle/High

鏡像Mirror

Off/On

翻轉Flip

Off/On

清晰度，銳利度Sharpness

0 - 10 steps

色差，陰影Shading

Off/On

數字變焦Digital Zoom

X1 - X10

隱私遮蔽Privacy Mask

32 Masks

移動偵測Motion Detection

Off/On

語言Language

Chinese/English/Korea/Japan

最大功率Power(Max.) supply

DC12V, Less than 2Watts

功率輸入Power Input

Connector

視頻輸出Video Output

HD-SDI: SMA connector, CVBS: BNC connector

尺寸Dimension

225mm x 115mm x 90mm

重量Weight

1150g
